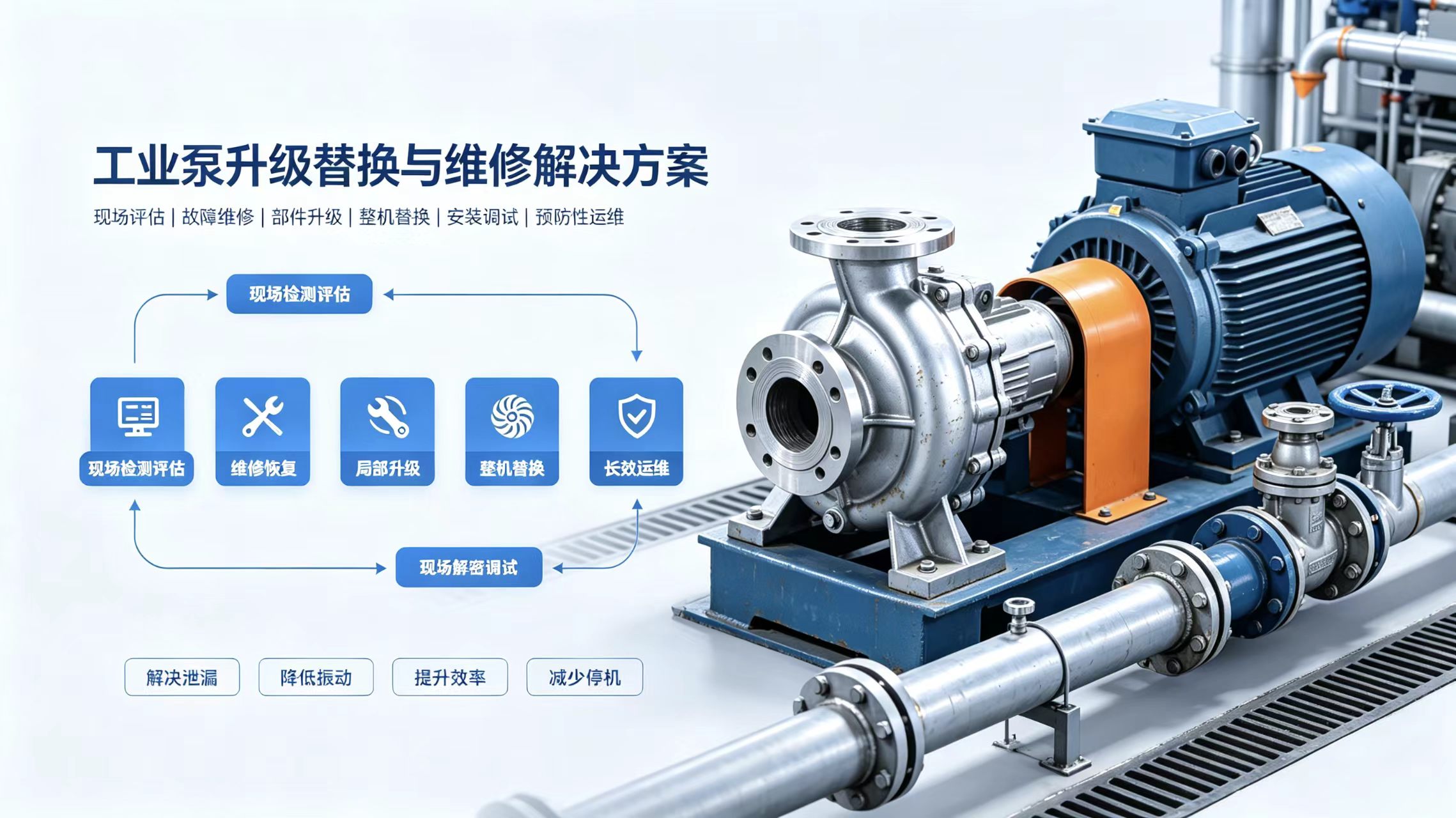

For industrial pumps (centrifugal pumps, slurry pumps) that are old, worn out, experiencing efficiency decline, suffering from media corrosion, exhibiting excessive vibration, or having seal leaks,Multi-stage pumps, submersible sewage pumps, etc.), providing an integrated solution of on-site assessment → repair/local upgrade → whole-machine replacement selection → installation and commissioning → preventive operation and maintenance. This approach ensures continuous production while reducing energy consumption, minimizing downtime and failures, and extending equipment lifespan.



 1. Operating parameters: Medium (clean water/sewage/mineral slurry/corrosive liquid), flow rate, head, temperature, inlet and outlet pressure.

2. Equipment Status: Pump casing corrosion/cavitation, impeller wear, impeller wear, shaft runout, bearing temperature, vibration value, mechanical seal leakage, motor current and efficiency.

3. Operational and Maintenance Costs: Annual maintenance frequency, spare parts procurement costs, downtime losses, and energy consumption data.



Judgment Criteria

 ✅Priority maintenance: The pump housing is intact; Repair costs are less than 50% of a new pump; Only components such as seals, bearings, and impellers, which are prone to damage, experience performance degradation of less than 15%, and spare parts are easily available.

✅Partial upgrade (without replacing the entire pump): The housing is usable, but it suffers from corrosion, cavitation, and high energy consumption; Replace wear-resistant/corrosion-resistant impellers, silicon carbide mechanical seals, upgrade bearings, install frequency converters, and apply wear-resistant coatings to enhance efficiency and service life.

✅Complete unit replacement: pump body casing cracking, severe cavitation; Maintenance costs exceed 60% of a new pump; Multiple major repairs within two years; The equipment has exceeded its designed service life; Significant changes have occurred in the process conditions, and the original pump parameters are no longer compatible.



 1. Safety Isolation: Shutdown, lockout/tagout, pressure relief, media drainage, and proper protection measures.

2. Disassembly and Inspection: Record the assembly sequence, clean components, perform dimensional surveying, and identify the root causes of faults (wear, cavitation, corrosion, misalignment).

3. Component Repair/Replacement

- Mechanical Seal: Replace with silicon carbide/cemented carbide seals to address leakage issues.

- Bearings: Replace with high-precision bearings to eliminate high temperatures, vibrations, and abnormal noises.

- Impeller and mouth ring: Replacement of worn parts, dynamic balancing (ISO 1940 standard)

- Pump housing: Crack repair welding, wear-resistant and corrosion-resistant coating restoration

4. Reinstallation Alignment: Correcting the coaxiality between the pump and motor, and aligning the coupling.

5. Test and Acceptance: No-load + Load Test Operation, monitoring vibration, temperature, noise, pressure, and potential leaks, and issuing a major overhaul report with test data.



IV. Partial Upgrading Plan (Retaining the Original Pump Body, Enhancing Performance)

 1. Hydraulic component upgrades: Replacement of high-efficiency impellers and wear-resistant liners to improve cavitation resistance, enhance pump efficiency, and reduce energy consumption.

2. Material upgrade: From ordinary carbon steel to high-chromium alloy/dual-phase steel, suitable for corrosive and abrasive media such as slurry, acids, and alkalis.

3. Sealing System Upgrade: Replace standard packing with integrated mechanical seals to reduce leakage.

4. Drive system upgrade: Installation of a variable frequency drive (VFD) to adjust flow as needed, avoiding energy waste from valve throttling.

5. Online Monitoring Upgrade: Installation of vibration and temperature sensors to provide early fault warnings and enable predictive maintenance.

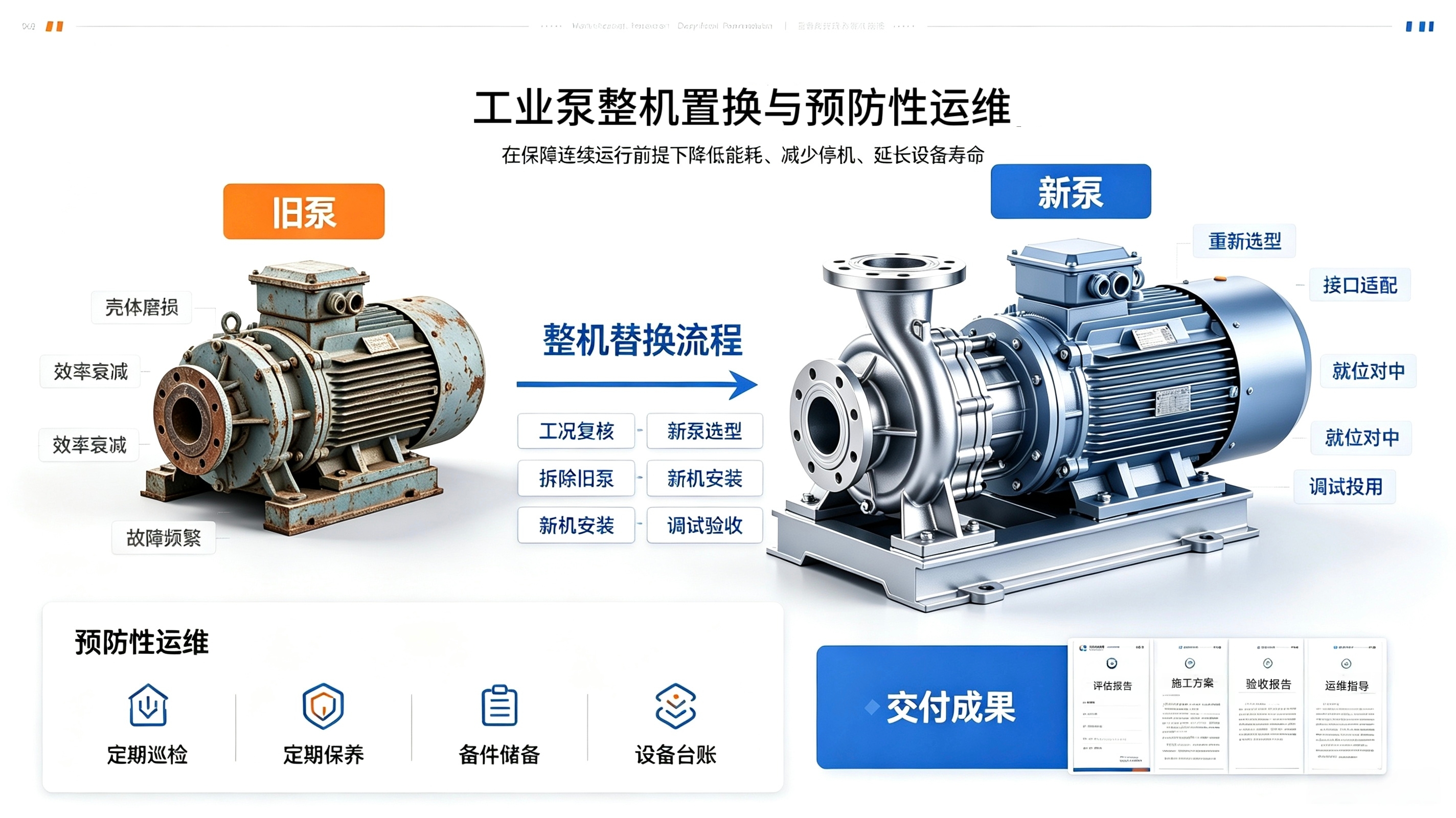

1.Re-select the equipment based on the actual site conditions: flow rate, head, medium characteristics, material, and motor power, to avoid either \"large machine for small job\" (energy waste) or undersized selection leading to insufficient output.

2. Interface Adaptation: Verify the dimensions of pipe flanges and base plates, and modify the foundation or short pipes as necessary.

3. Dismantling the old pump, leveling the foundation, positioning the new machine, aligning pipelines, and motor centering.

4. System purging, medium filling, no-load trial operation, and load-bearing commissioning.

5. Old pumps can be evaluated: those that can be repaired can serve as backup pumps, while those that cannot be repaired should be scrapped and disposed of.



1. Regular inspections: vibration, temperature, seal leakage, oil level, current.

2. Regular maintenance: lubricant replacement, seal inspection, coupling alignment.

3. Establish a spare parts inventory: stockpile vulnerable components such as bearings, mechanical seals, and gasket rings to reduce emergency repair downtime.

4. Establish an equipment ledger to record operational parameters, maintenance history, and predict the lifecycle.



1. Downtime Risk: Implementing an online emergency repair/backup pump switching solution to minimize production halt time as much as possible.

2. Quality Assurance: A test report will be provided after major repairs; The new pump comes with a warranty; Review of Performance Curves After Modification

3. Safety Assurance: Strictly enforce power shutdown and lockout/tagout procedures, confined space protocols, and protective measures for hazardous chemical media.



Equipment Evaluation Report, Fault Analysis Report, Maintenance/Modification Drawings, Parts List, Test Run Records, Acceptance Report, Operation and Maintenance Guide.
