Mechanical Seal Replacement & Upgrading | Mechanical Seal Maintenance, Professional Fault Diagnosis & Repair, Maintenance & Replacement, Customized Restoration Services

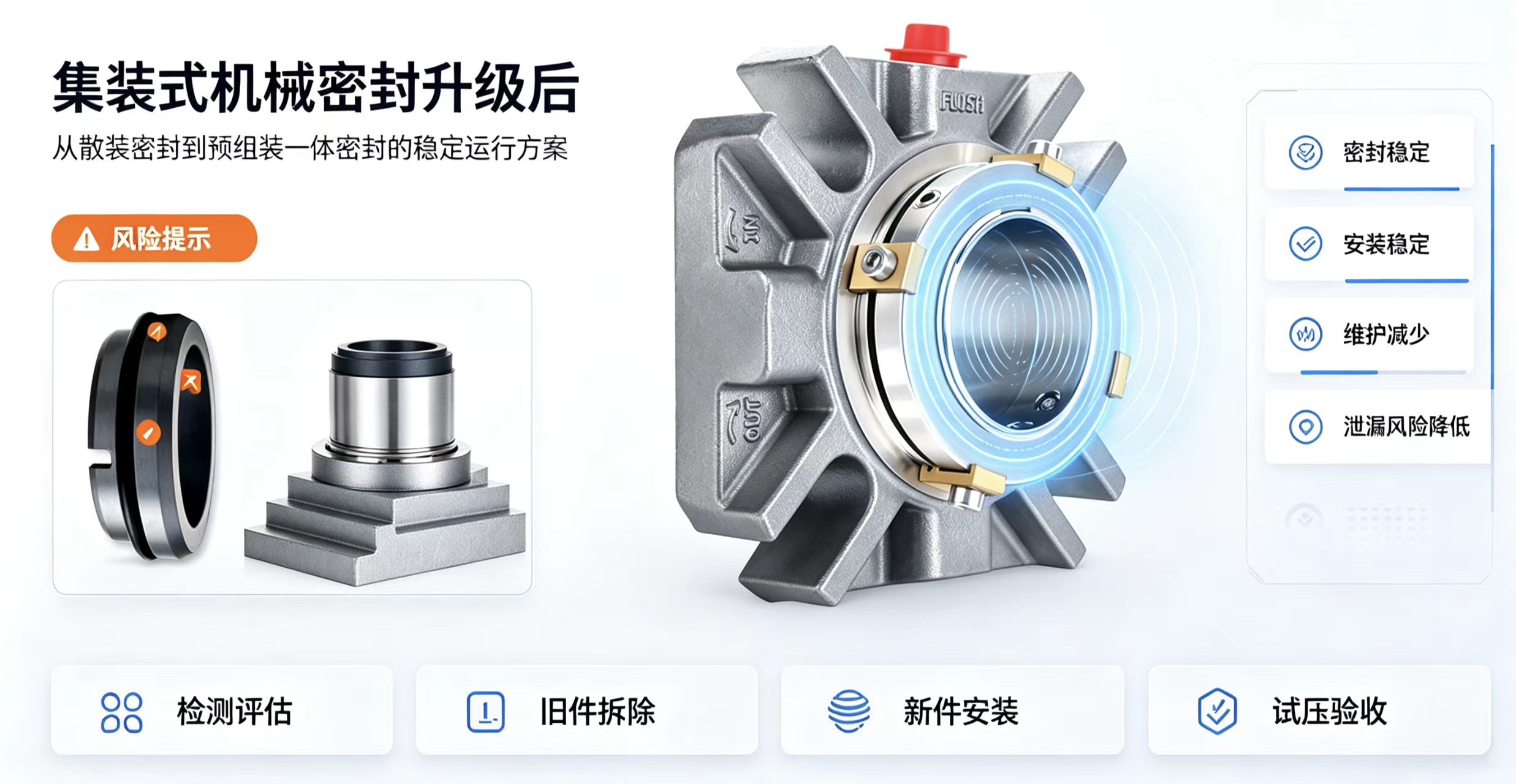

Addressing issues of seal leakage, frequent failures, abnormal temperatures, and excessive vibration in industrial pumps, we offer mechanical seal inspection, fault analysis, replacement installation, and system upgrade services. It can be tailored based on the medium, pressure, temperature, rotational speed, severe corrosion, high viscosity conditions, and installation requirements, Upgrade packing seals or aging mechanical seals to modular mechanical seals, double-face seals, or corrosion-resistant and heat-resistant sealing structures. This will reduce leak points, lower maintenance frequency, and enhance the continuous operation stability of equipment.

Mechanical seals are core precision sealing components for fluid transport equipment such as centrifugal pumps, slurry pumps, process pumps, and sewage pumps, directly determining the equipment's sealing performance, stability, and service life. Once sealing components suffer from wear, aging, leakage, or end-face failure, they can easily lead to equipment leaks and spills, increased energy consumption, and production shutdowns, severely impacting the normal operation of the production line.

Owei Industry specializes in the maintenance and inspection of mechanical seals for various industrial pumps, One-stop replacement and maintenance services, leveraging years of experience in fluid equipment support, provide precise repair solutions tailored to different operating conditions, media types, and equipment models. We efficiently address common mechanical seal failures, restoring stable sealing performance for equipment while reducing operational costs and downtime risks for enterprises.

I. Common Faults and Causes of Mechanical Seals

Mechanical seals are high-precision, vulnerable components. Prolonged high-speed operation, media corrosion, impurity erosion, dry friction at high temperatures, and installation deviations can all lead to seal failure. We provide precise diagnosis and repair for high-frequency faults in the industry:

1. Continuous leakage, dripping water and oil seepage.

Mostly caused by wear, scratches, or deformation of the sealing end faces, or by aging, loss of elasticity, or uneven stress on the cover plates of O-rings, these are the most common sealing failures in equipment.

2. The medium leakage is significant, and it leaks as soon as it is turned on.

Due to excessive heat generated from dry grinding, end-face thermal cracking, spring jamming failure, and bearing wear causing eccentricity, the sealing surface cannot achieve proper contact and closure.

3. Corrosion and aging, swelling and hardening.

In chemical, sewage, and acidic/basic media environments, sealing materials made of rubber, graphite, and silicon carbide are susceptible to corrosion from these media, leading to swelling, hardening, hardening, cracking, and shedding.

4. Impurity wear, end face scratches

Prolonged erosion by media containing granules, slag, and silt has caused scratches and grooves on the sealing end face, leading to a complete failure of sealing precision.

5. Newly installed seals experiencing short-term failure.

Most cases of short-term secondary damage are caused by installation errors such as improper installation, axis deviation, uneven torque on pressure caps, failure to clean impurities, and dry grinding during idle rotation.II. Professional Mechanical Seal Maintenance Process Flow

We abandon simple replacement-based repairs and adopt a standardized process of inspection, disassembly, cleaning, repair, matching, and testing to ensure precision and service life:

1. Precise Detection of Operating Conditions and Faults

On-site inspection of equipment operating conditions, medium properties, pressure and temperature, vibration deviations, and vibration anomalies to identify the root causes of seal failure. Distinguish between issues such as end-face leakage, auxiliary seal leakage, structural failure, and equipment fit deviation to avoid blind replacements. This approach prevents unnecessary and haphazard component substitutions.

2. Non-destructive disassembly and deep cleaning

Use specialized tools for non-destructive disassembly to prevent secondary damage to the bearing sleeve and cavity caused by hammering and forceful removal; Thoroughly clean the chamber, shaft sleeve, pressure cover, and spring assembly, removing any media scale, particulate impurities, and oil residues to ensure the mating surfaces are clean and smooth.

3. Accessory Inspection and Compatibility Replacement

Conduct individual inspections of the dynamic ring, static ring, spring, O-ring, shaft sleeve, and auxiliary sealing rings. Based on industrial-mining matching, replace aged, worn, or corroded components with compatible materials such as silicon carbide, hard alloy, graphite, or fluororubber, selecting appropriate materials like silicon carbide, hard alloy, graphite, or fluororubber according to mining and industrial requirements.

4. Precision assembly, alignment, and leveling.

Strictly adhere to mechanical seal assembly standards, correct shaft centerline concentricity, uniformly tighten cover bolts with appropriate torque, and maintain a reasonable compression allowance. This approach avoids common assembly issues such as uneven wear, play, and non-uniform pressure distribution, thereby eliminating new installation leaks at the source.

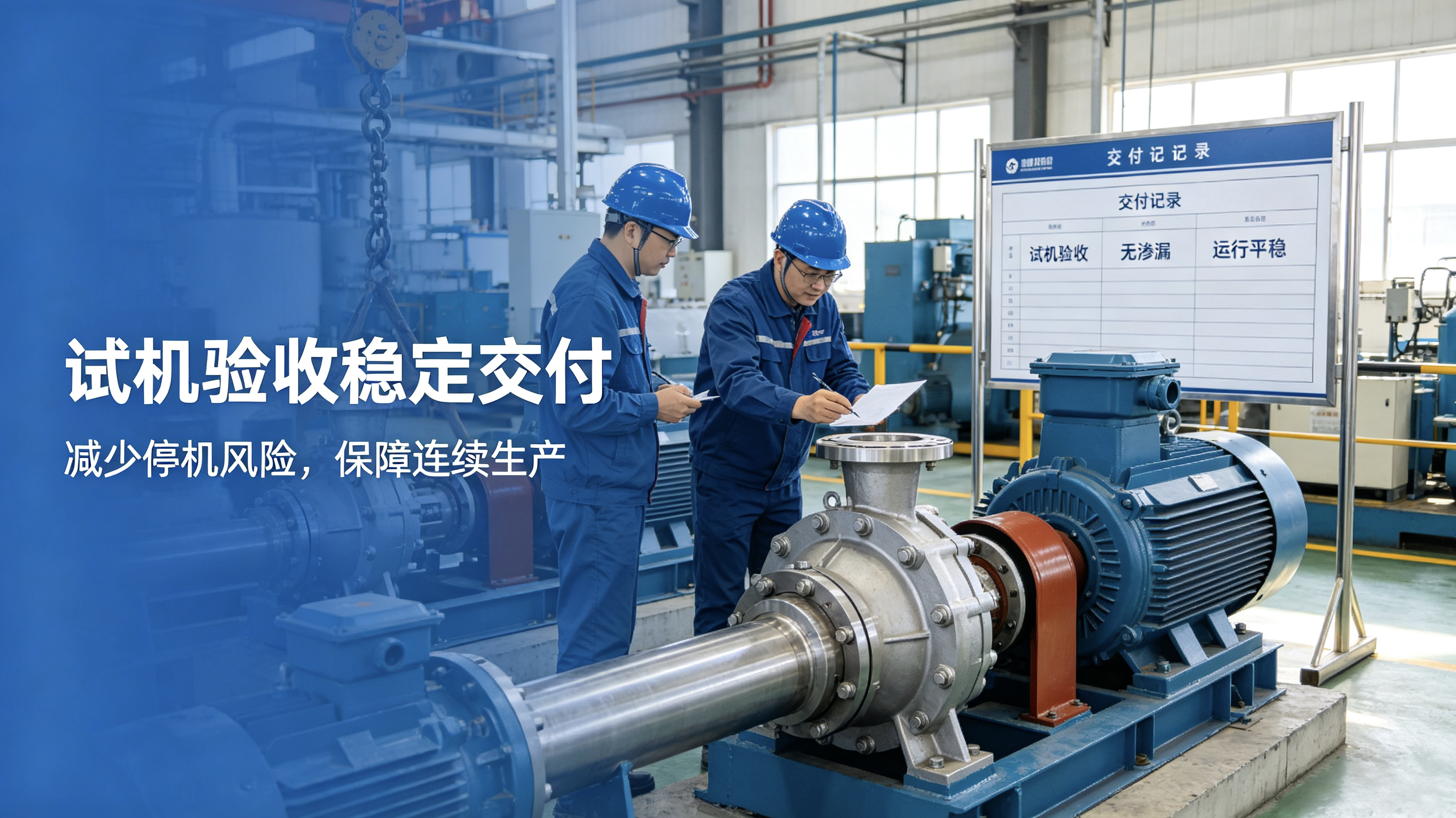

5. Test machine acceptance, stable delivery.

After assembly, conduct empty-load and loaded segmental testing to verify no leakage in sealing, no abnormal heating or overheating, and smooth equipment operation. Deliver complete maintenance records and care instructions, along with comprehensive repair and inspection documentation and maintenance recommendations.

III. Types of mechanical seals that we can repair and adapt to.

Suitable for various industrial conditions across all sectors, including clean water, wastewater, chemical, desulfurization, mining, sugar production, and metallurgy:

- Mechanical seals for general-purpose pumps, single-face/double-face mechanical seals

- Slurry pump, sewage pump, multistage pump, submersible sewage pump specialized seals

- High-temperature resistant, corrosion-resistant, and wear-resistant special mechanical seals

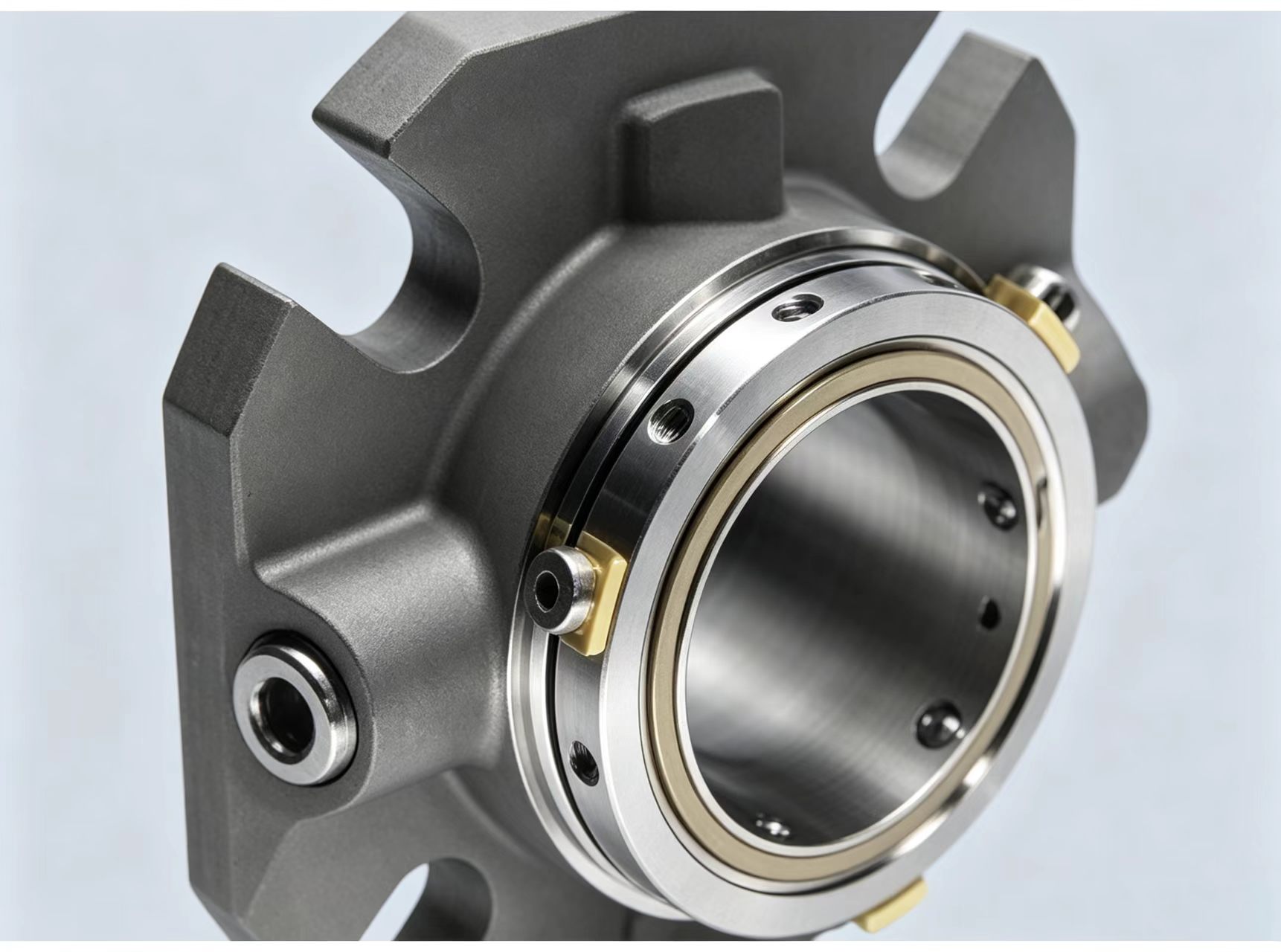

- Customized maintenance of non-standard seals in spring-type, bellows-type, and modular designs.

IV. Regular maintenance to extend the service life of seals.

The premature failure of a large number of seals is primarily due to the lack of regular maintenance. We offer regular maintenance services:

1. Regularly inspect for seal leaks, overheating, and abnormal vibrations to anticipate potential failures in advance;

2. Clean the medium filtration system to reduce particle wear on the sealing end faces;

3. Avoid equipment idling, dry grinding, and operation under excessive pressure or temperature;

4. Periodically replace aging auxiliary sealing components to prevent sudden leaks and production stoppages.

V. Owei Industry | A Reliable Mechanical Seal Maintenance Service Provider

Leveraging the full industrial pump equipment supply chain advantages, we not only offer rapid maintenance, Emergency repairs and component replacements can further integrate with equipment conditions to provide customized sealing upgrades tailored to specific operational scenarios: For harsh environments involving high wear, strong corrosion, and high temperature/pressure, upgraded compatible materials and structures significantly enhance sealing durability, reducing long-term operational costs for enterprises.

We adhere to: precise maintenance, standardized assembly, original factory compatibility, and long-term stability. By leveraging professional technology to address equipment sealing challenges, we help enterprises achieve stable and continuous production, reducing costs and improving efficiency.

For mechanical seal fault detection, on-site repair, bulk maintenance, and non-standard seal customization, please feel free to consult us at any time. We offer one-on-one condition matching and technical coordination services.
