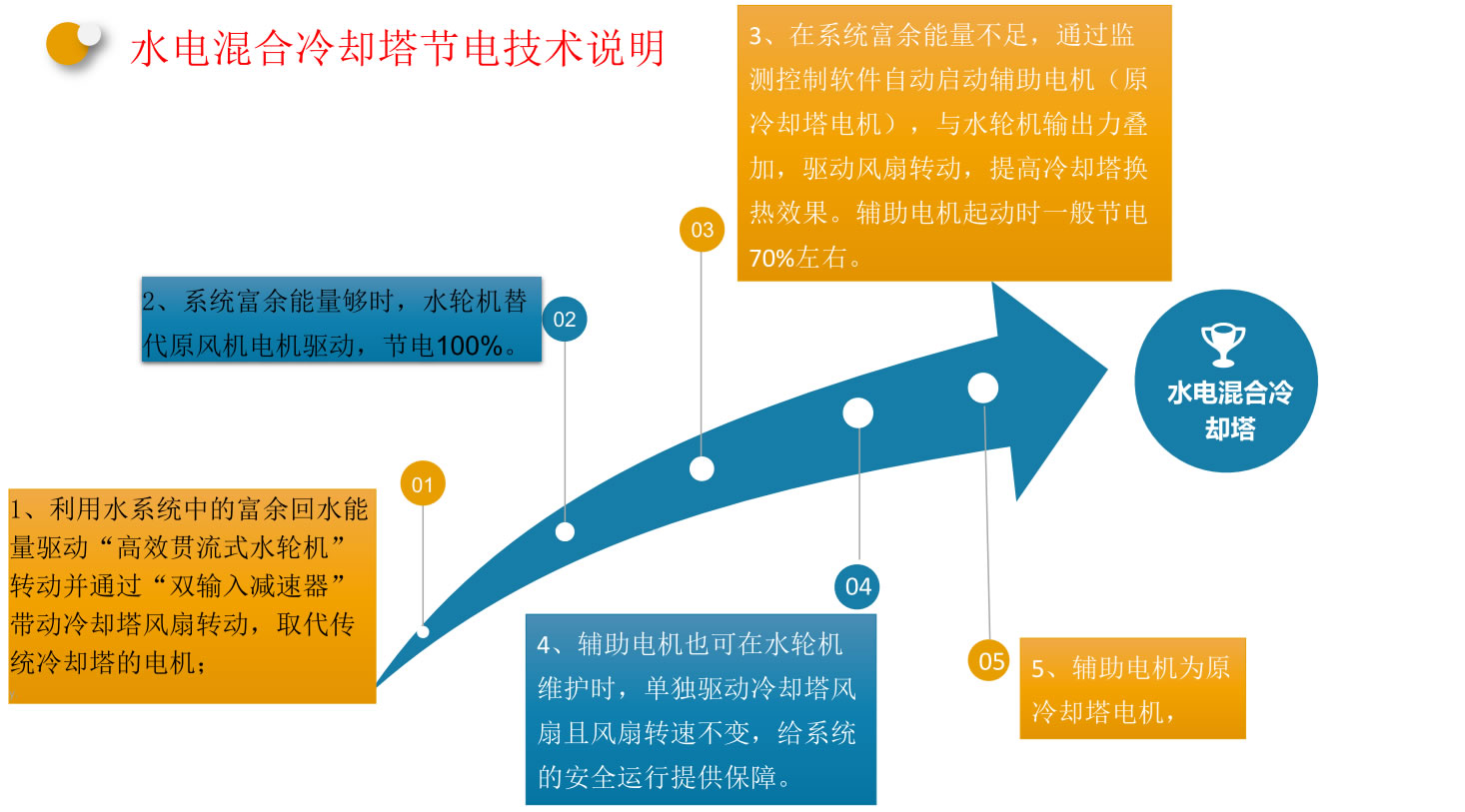

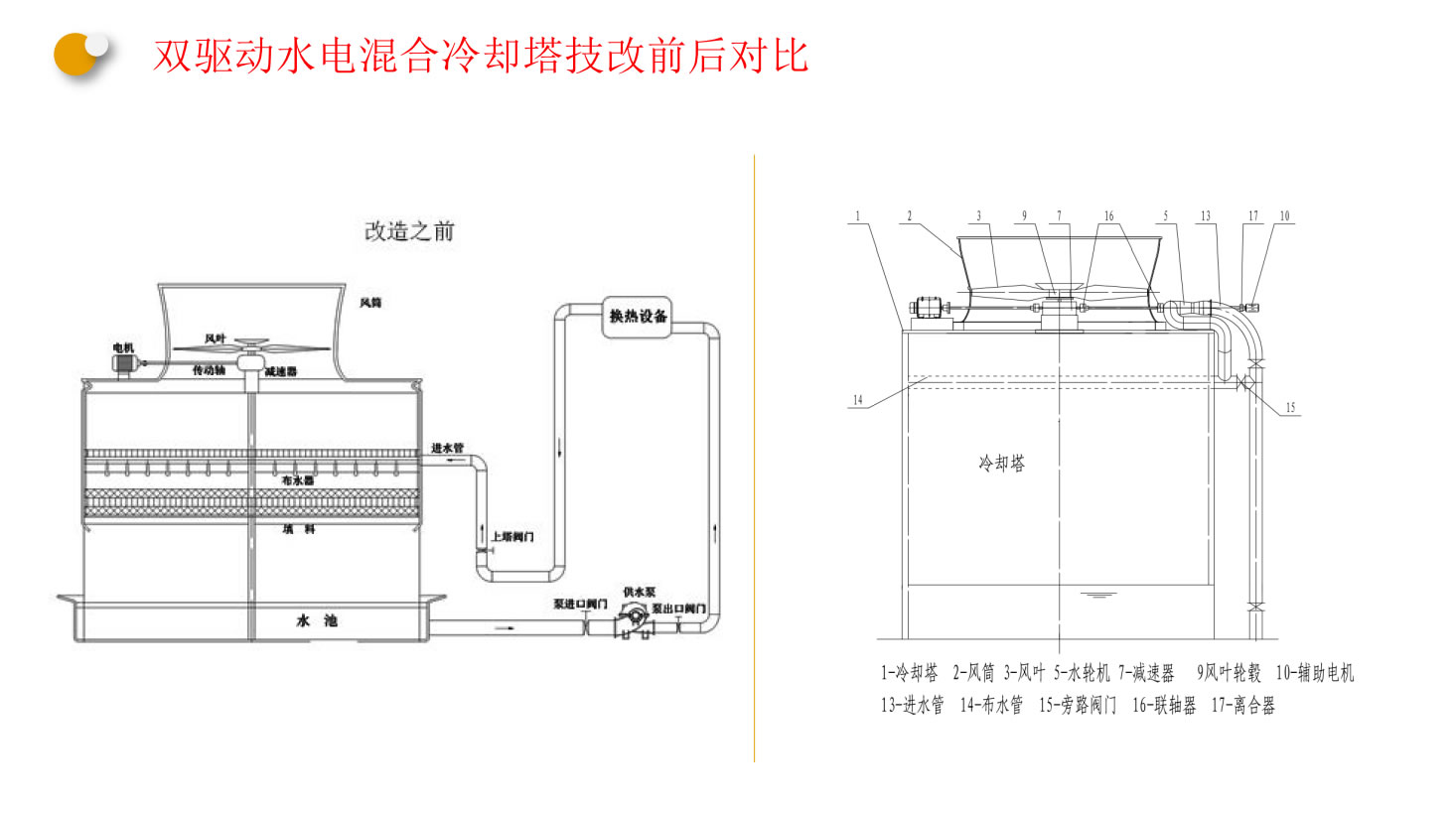

Dual drive hydroelectric hybrid energy-saving technology for cooling towers

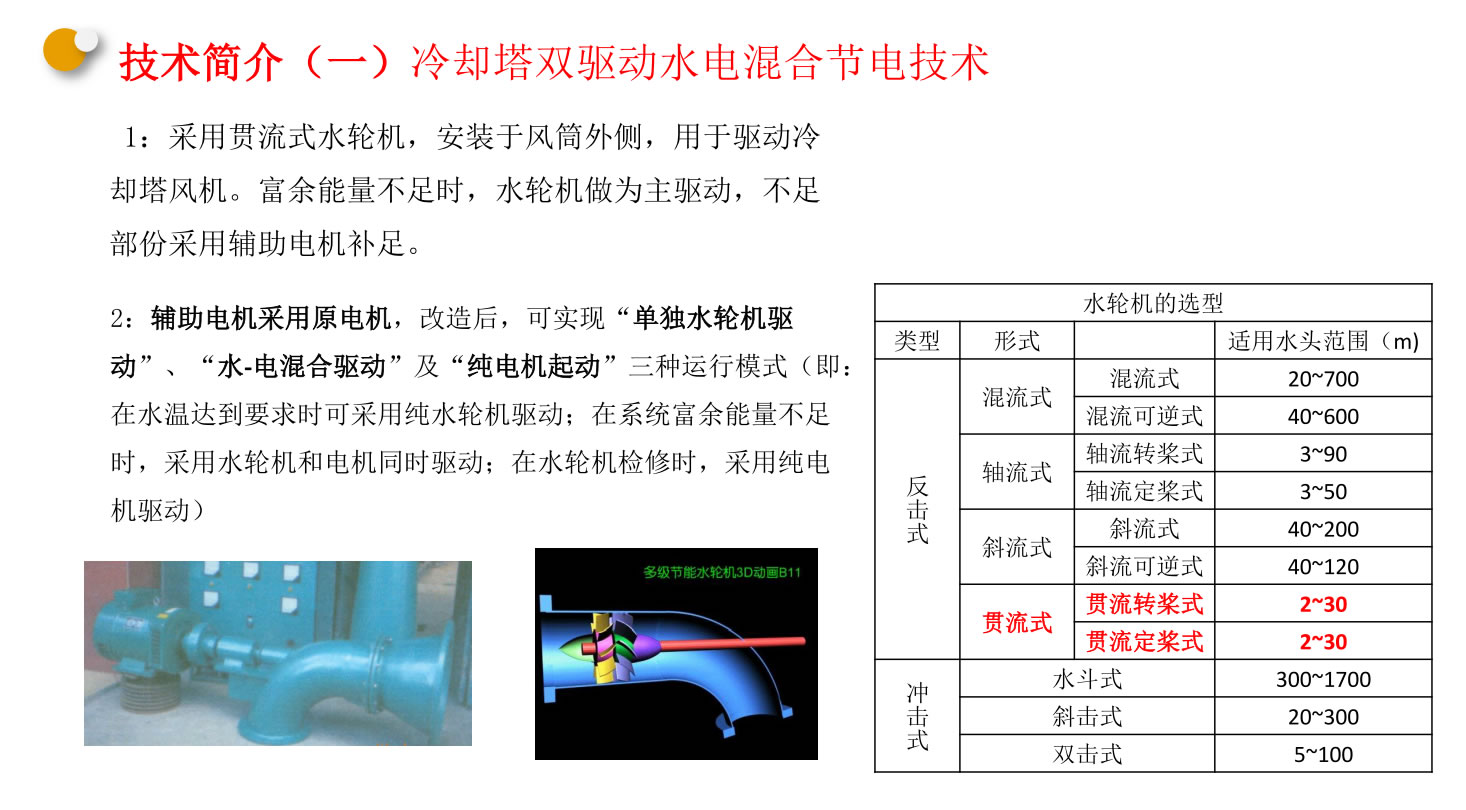

1: Adopting a through flow turbine, installed on the outside of the air duct, used to drive the cooling tower fan. When the surplus energy is insufficient, the water turbine is used as the main drive, and the insufficient part is supplemented by an auxiliary motor.

2: The auxiliary motor adopts the original motor, and after transformation, it can achieve three operating modes: "single turbine drive", "water electric hybrid drive", and "pure motor start" (i.e., when the water temperature meets the requirements, pure turbine drive can be used; when the system has insufficient surplus energy, both turbine and motor drive can be used; during turbine maintenance, pure motor drive can be used)
