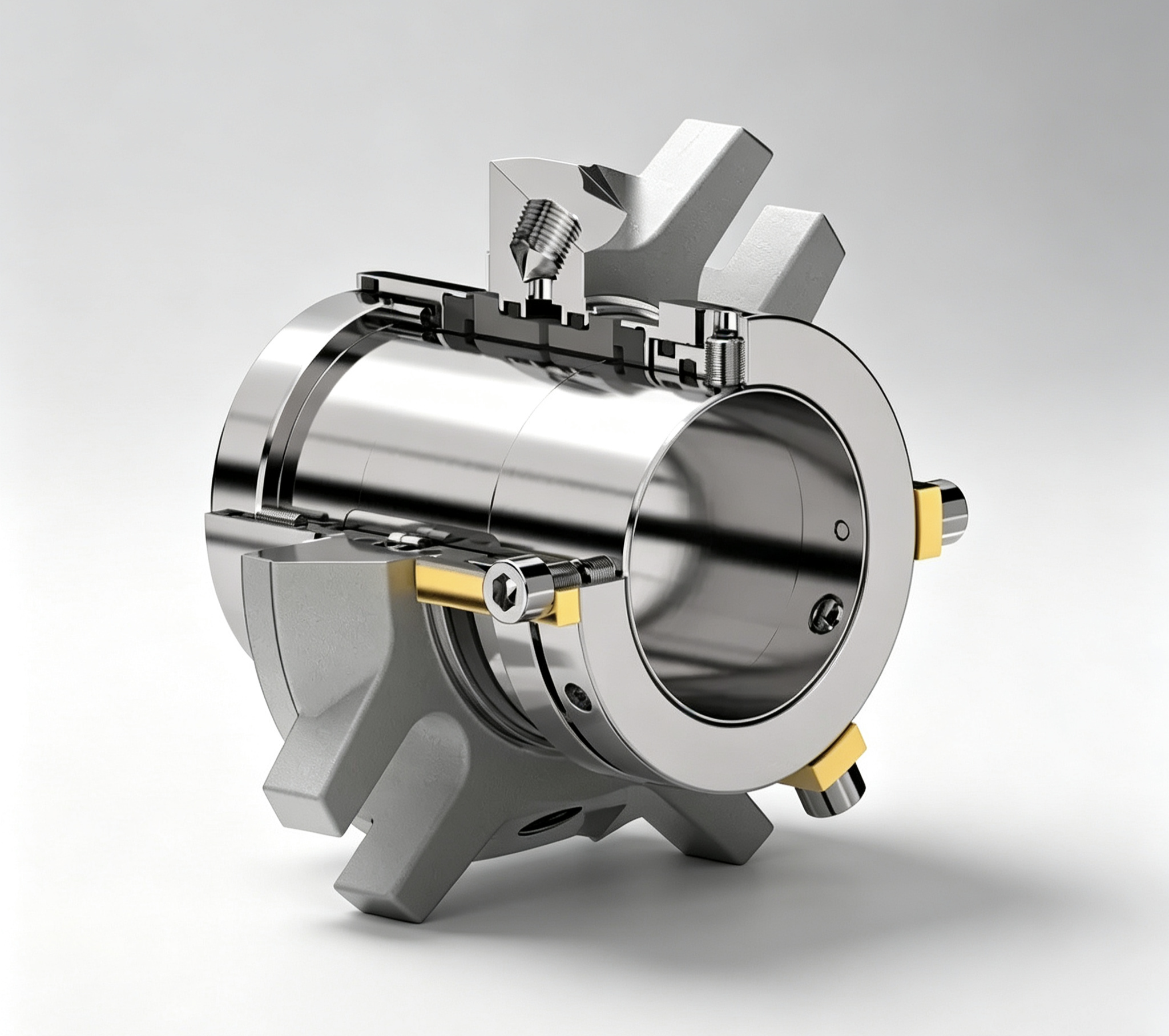

Integrated container structure, easy to install. Double-sided double sealing protection, effectively preventing medium leakage, self-cleaning interface, suitable for toxic, flammable, containing particles and other complex working conditions, widely used in chemical, mining, sewage and other industrial pumps, stable operation, safe and reliable.
Product features
·Rotating propulsion container seal with back-to-back configuration.
·Hydraulic balanced sealing surface, which reduces heat generation, lowers energy consumption, and extends seal life.
·Modular design, standardization of common components, to achieve maximum flexibility and delivery performance.
· Multi-spring design, the spring is placed outside the product medium, which can eliminate blockage and extend the sealing life.
Applicable cavity type
·Suitable for ISO2858 standard chambers and other compact chambers.
· Modular container design, suitable for general working conditions.
·The dimensions range from 1.00 inches to 4.00 inches (24 mm to 100 mm).
Typical industrial applications
·Chemical and petrochemical industries.
·Oil, gas, and energy sectors.
·Water treatment and environmental protection engineering.
· Pharmaceutical and food and beverage industries.
· Dangerous chemicals and special industries.
· Ships and offshore engineering.

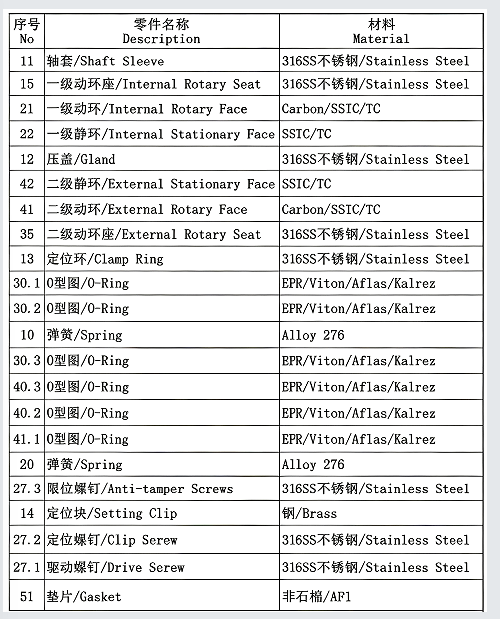

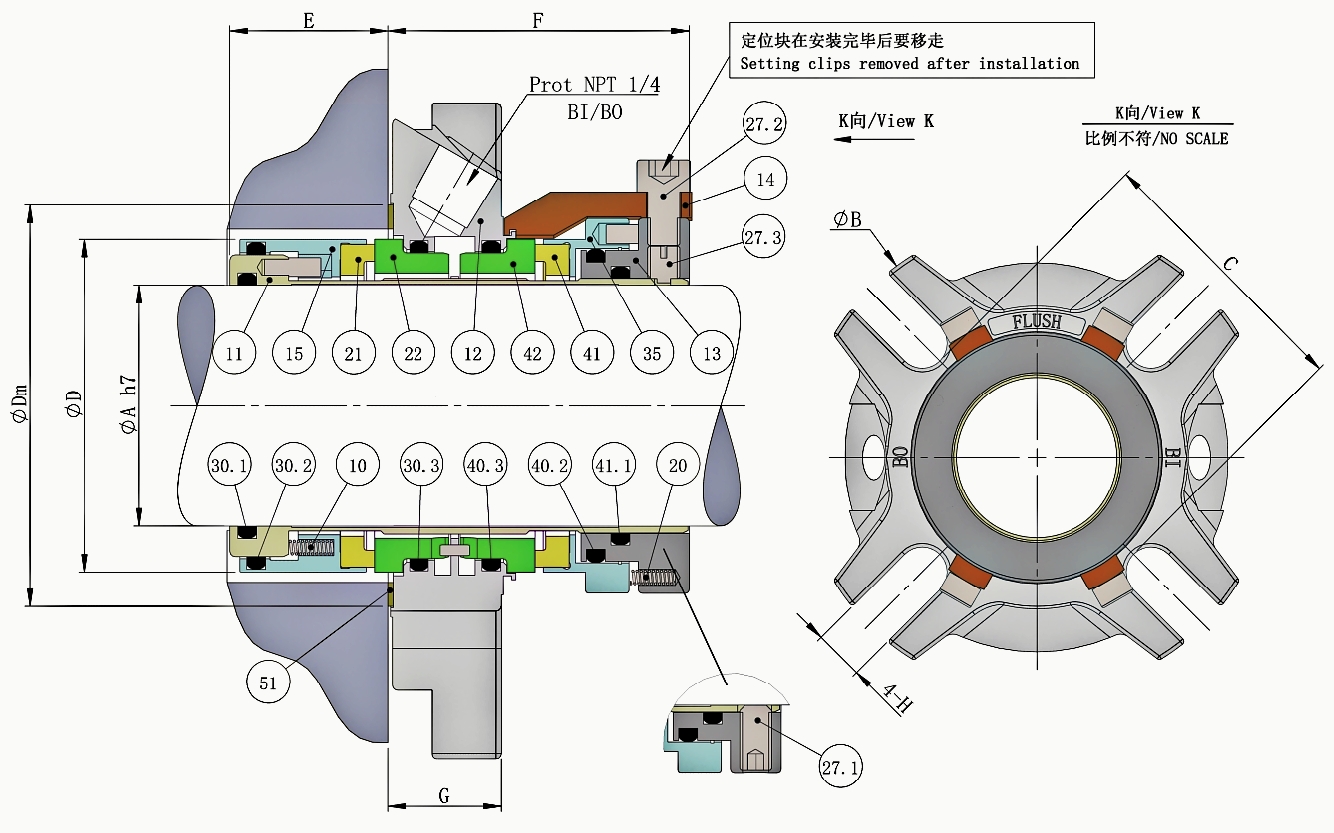

Product Structure Diagram and Standard Material Comparison Table
Product Structure Diagram and Standard Material Comparison Table

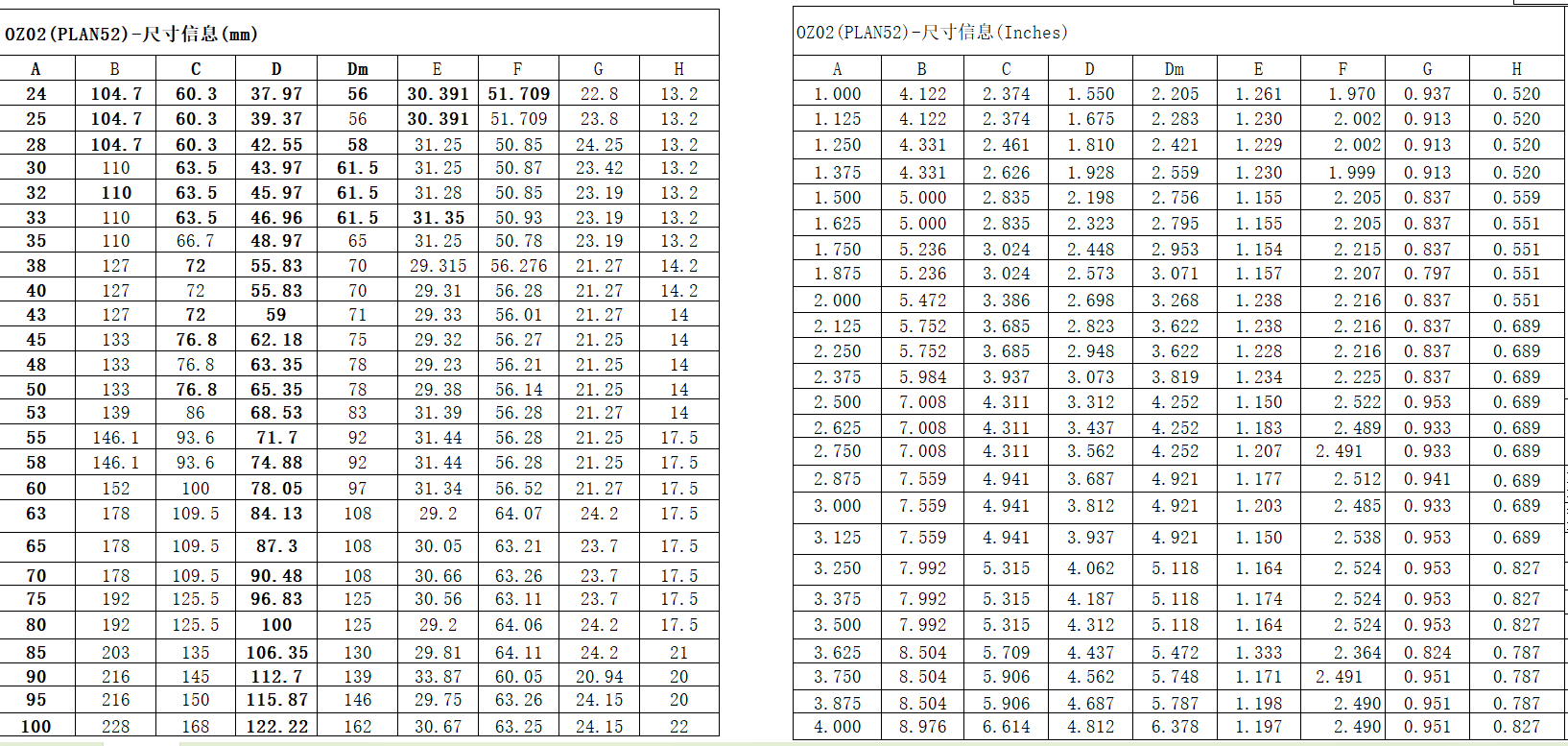

OZ02 Dimensions
Pump head
Product materials
Temperature range
-20℃~120℃
Pressure
≤15bar
Traffic
Application
For the chemical and petrochemical industry, oil, natural gas and energy sector, water treatment and environmental protection engineering, pharmaceutical, food and beverage industry, hazardous chemicals and special industries, shipbuilding and ocean engin
1. Double-ended seal structure
Double protection of main sealing and safety sealing is formed, which reduces the risk of medium leakage.
2. Centralized container design
Factory pre-assembled, convenient on-site installation, and reduced commissioning time.
3. Compatible with complex working conditions
Configurable flushing, cooling, and blocking schemes, suitable for high-temperature, high-speed, particle-containing, or corrosive media.
4. Stable and reliable operation
The sealed end surface experiences uniform stress distribution, exhibits strong vibration resistance, and operates more stably over the long term.
5. Lower maintenance costs
The compact structure and easy replacement help reduce downtime and maintenance costs.
