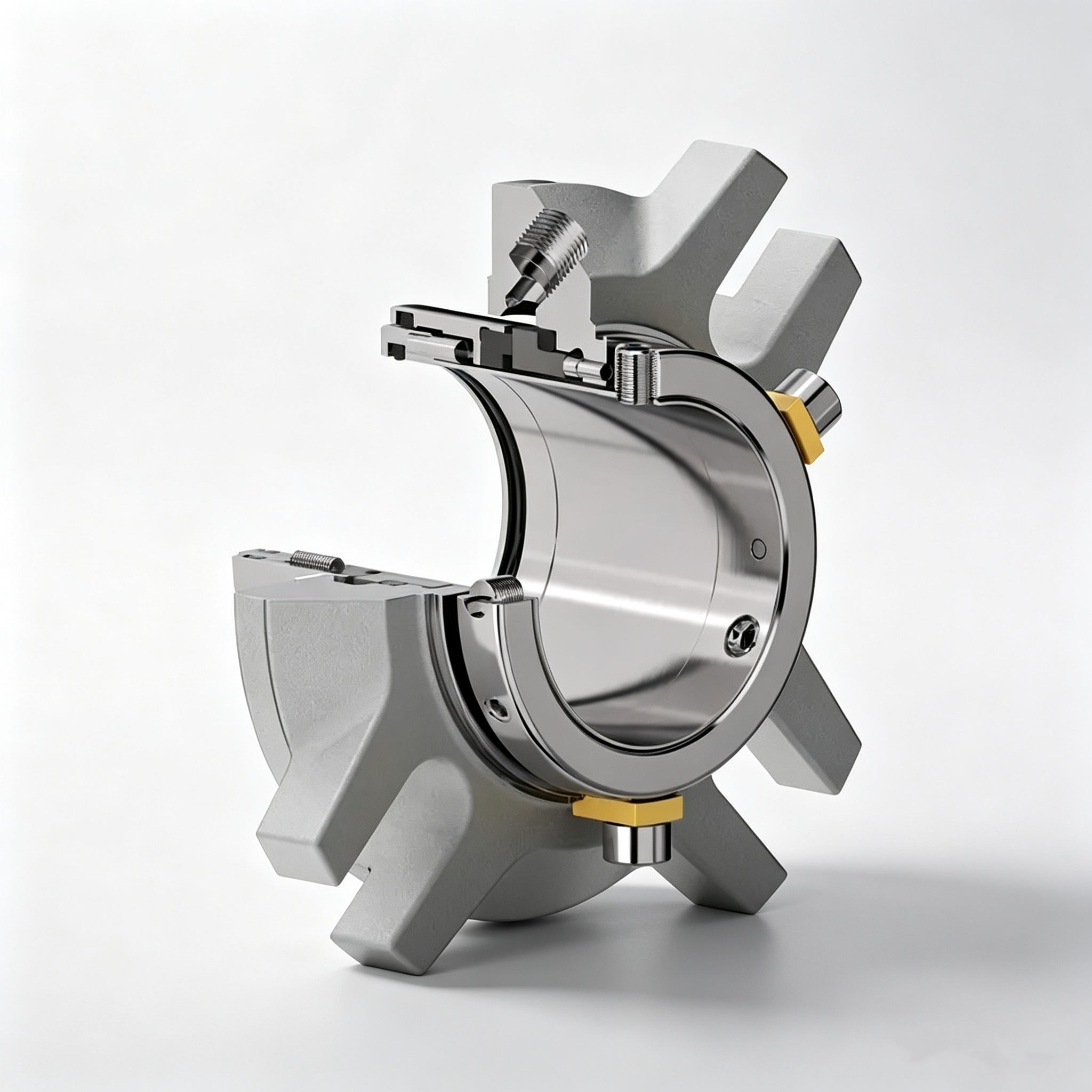

Standard centralized single-ended mechanical seal, compact structure, easy installation, stable sealing performance. Compatible with a variety of industrial pumps, suitable for scenarios such as mining, sugar production, and sewage treatment, durable and easy to maintain, effectively preventing medium leakage.
Product features
Rotating compensation type sealing end face.
The balanced sealing end face can reduce heat generation, reduce energy consumption, and prolong the life of the seal.
Modular design, standardized common parts, can achieve maximum flexibility and delivery performance.
Multi-spring design, the spring is placed outside the product medium to eliminate blockage and extend the sealing life.
Applicable cavity type
It is suitable for ISO2858 standard cavities and other compact cavities.
A containerized mechanical seal that can be used as a substitute for packing gland.
Modular container design, suitable for general working conditions.
The dimensions range from 1.00 to 4.00 inches (24 mm to 100 mm)
Typical industrial applications
Chemical and petrochemical industries.
Oil, natural gas and energy fields.
Water treatment and environmental protection engineering.
Pharmaceutical and food and beverage industries.
Hazardous chemicals and special industries.
Marine and offshore engineering.
Standard centralized single-ended mechanical seal, compact structure, easy installation, stable sealing performance. Compatible with a variety of industrial pumps, suitable for scenarios such as mining, sugar production, and sewage treatment, durable and easy to maintain, effectively preventing medium leakage.

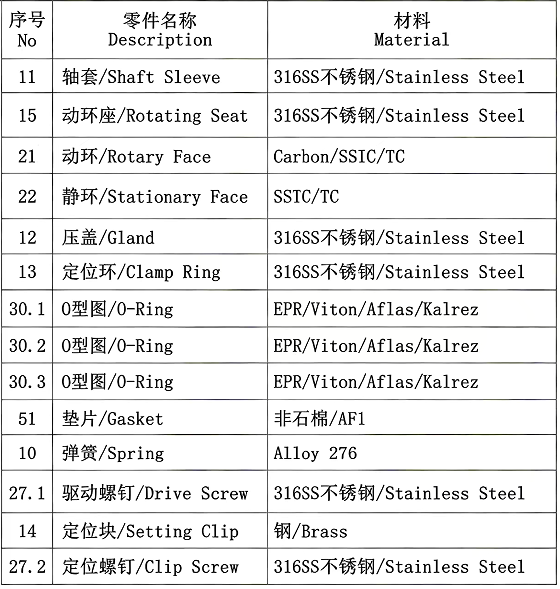

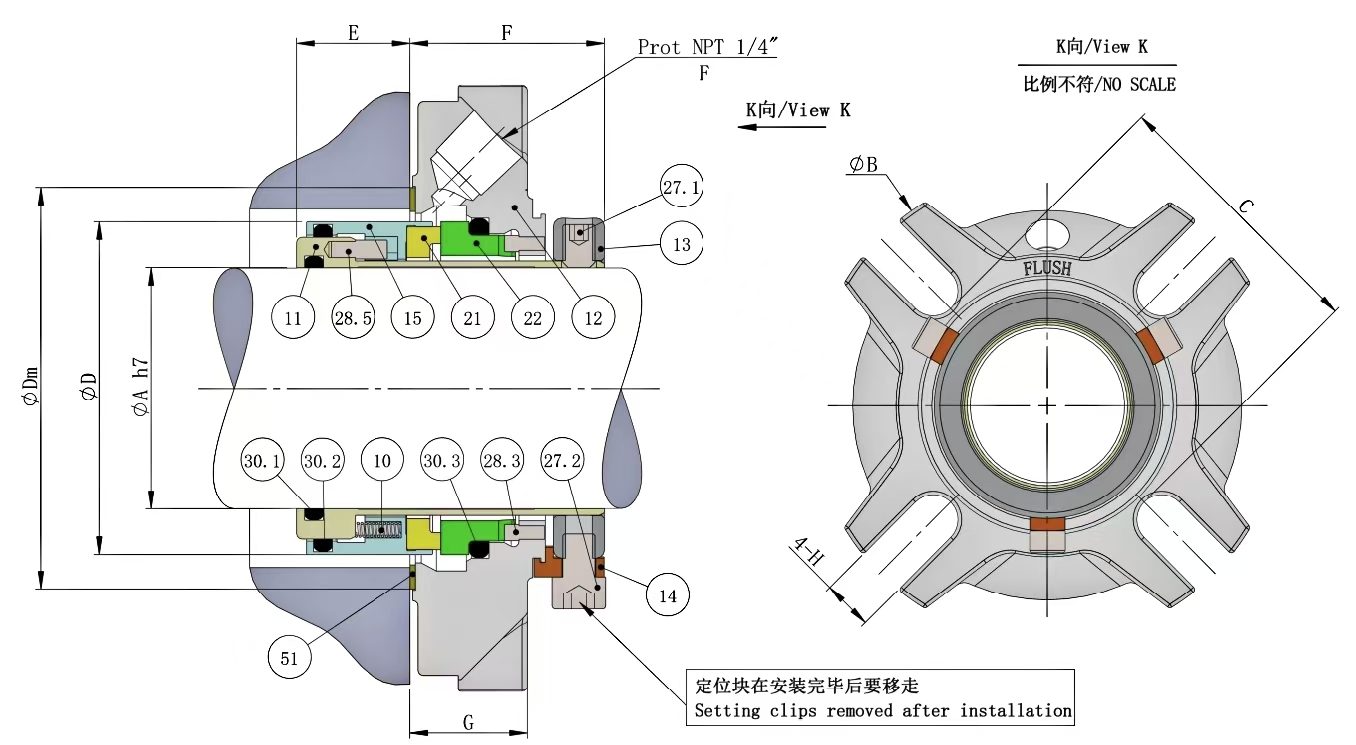

Product Structure Diagram and Standard Material Comparison Table

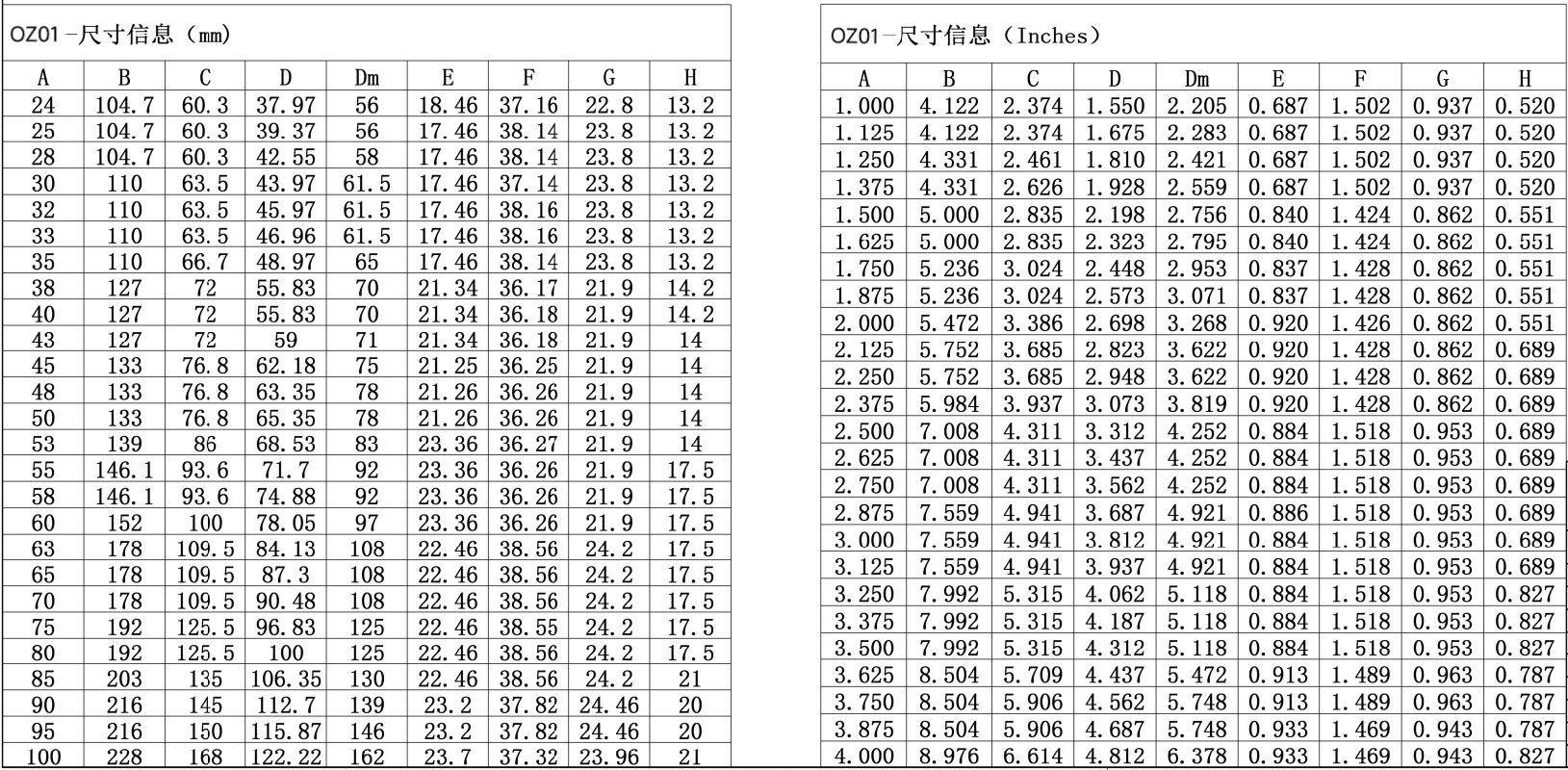

OZ01 Dimensions
Pump head
Product materials
Temperature range
Pressure
Traffic
Application

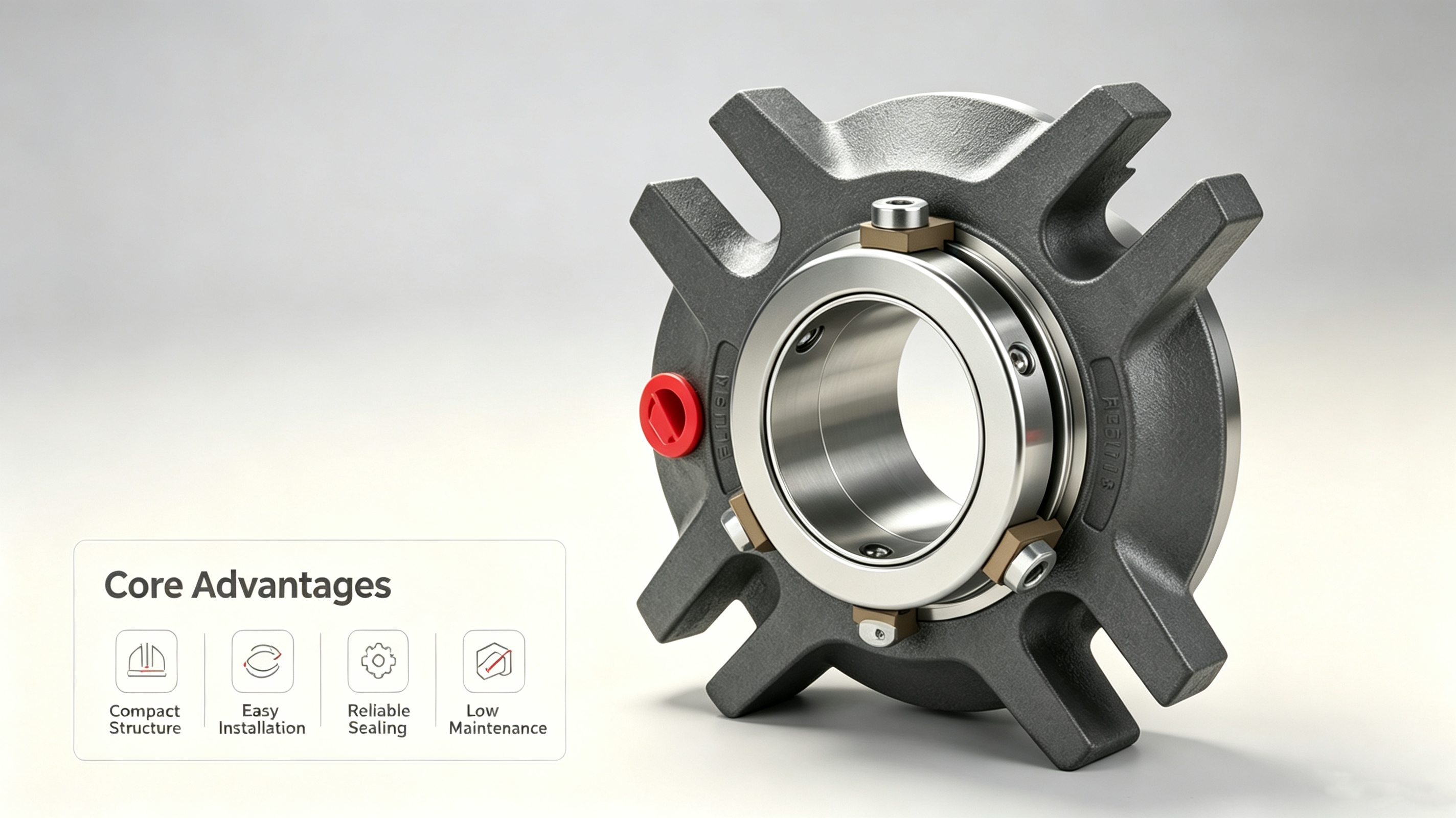

1. Simple installation and time-saving maintenance: pre-adjusted in the factory, quick on-site disassembly and reassembly, reducing the downtime of the pump.
2. Sealing is reliable and leakage-proof: the precision ground sealing end face effectively blocks the leakage of the medium, protecting the pump bearings and the on-site environment.
3. Strong resistance to impurities and durability: external flushing scheme, suitable for mines, sugar, sewage and other situations with a small amount of solid particles, extending the service life of the seal.
4. Universal: Suitable for a variety of standard industrial pumps, replace the traditional loose packer seal, easy to replace and modify.
5. Reduce overall operation and maintenance costs: reduce leakage, reduce downtime frequency, and save maintenance manpower and spare parts consumption.
