OKC is a high-end fluid handling device that integrates advanced hydraulic modeling technology, innovative mechanical design, and intelligent control systems. It is specifically designed to address critical issues in industrial fluid transportation, such as corrosion, wear, long fiber entanglement, and high-viscosity media.
OKC is a high-end fluid processing device that integrates advanced hydraulic modeling technology, innovative mechanical design, and intelligent control systems. It is specifically designed to address critical issues in industrial fluid transportation, such as corrosion, wear, long-fiber entanglement, and high-viscosity media. OKC not only effectively meets the stringent requirements of harsh industrial environments, enhancing equipment reliability and service life, but also reflects the ongoing industry trend toward energy efficiency and intelligent system upgrades.
Low axial force and spacious flow channel design:
1. The low axial force and spacious flow channel design make the pump suitable for conveying various media. Depending on the impeller design, they can also transport media containing particles with a concentration of 8% -10%;
2. Modular design enhances its stability and versatility, and its durable components reduce the number of required spare parts; The standard material configuration for the entire pump is duplex steel 2205, ensuring that the pump can adapt to various corrosion and material wear.
3. Wide spectrum, with a performance range covering a maximum head of 160m, a maximum flow rate of 7560m ³/H, a maximum temperature of 200 ℃, a pressure rating of 2.5MPa, and standard WEG high-efficiency four stage motor (1450r/min) to reduce speed and wear resistance;
4. The integral single casting design and heat sink structure design are more effective in dissipating heat from the bearings, extending their service life. A wear-resistant lining plate is used to better protect the service life of the pump casing.
Standardized products have high interchangeability:
This bearing unit is a standardized universal component, with only 7 specifications available in the entire series to ensure consistency and interchangeability.
The overcurrent components (pump body and impeller) are specially designed according to the specific working conditions and liquid characteristics of the customer;
Pump cover, coupling, sealing components, and universal base plate are modular standard parts.
Standardized design can effectively reduce customers' inventory of spare parts.
Hydraulic design:
We ensure that the OKC series pumps operate at high efficiency through extensive computational fluid dynamics (CFD) calculations and experiments.
Our design philosophy and product development will always maintain efficiency, flexibility, and reliability, and our products and services will always remain superior.
We have laid the foundation in the manufacturing of hydraulic machinery, continuously providing proprietary technology to maximize benefits for our customers.
Wide spectrum:
Performance curve of OKC process pump
Lift: up to 160 meters
Temperature: up to 200 degrees Celsius
Flow rate: maximum 7560m3/H
Operating frequency: 50Hz
Pressure: Maximum 2.5MPa
(Determined by materials and specifications)
Multi medium impeller selection:
1. The OKC series pumps have a wide hydraulic model that can provide the best specification matching for demand, enabling the pumps to operate at the lowest energy consumption under different operating conditions.
2. The open impeller is equipped with balance holes, which can ensure stable sealing chamber pressure, improve the flushing environment of the machine seal, balance the axial force of the impeller, reduce the impact on the bearings, and increase the service life of the pump.

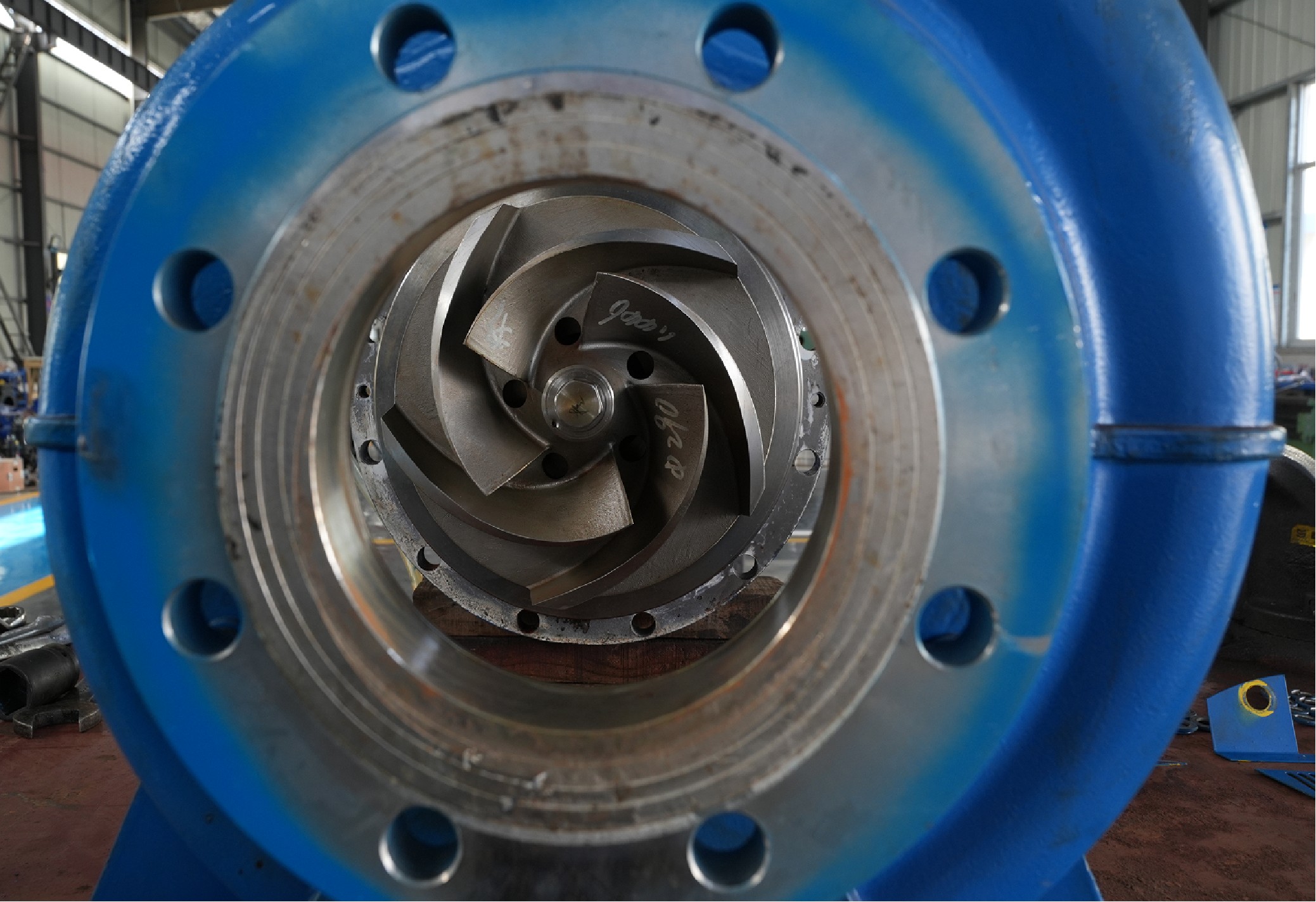

3. The impeller has various designs, including closed, open, and special open impellers, which enable the pump to meet special needs such as pumping pulp, sugar juice sludge, and solid liquids.
4. The back blade design of the impeller ensures that there are no impurities in the gap between the impeller and the pump cover, reducing the axial load on the bearing. Increase the service life of the pump.
Pump head
Product materials
Temperature range
Pressure
Traffic
Application
产品
OKC Process Pump Sample Catalog - Revised Edition (March 9, 2026)
Download
• Can meet the requirements of harsh industrial environments, including corrosion resistance, wear resistance, long fiber winding, and high viscosity media
• Suitable for conveying various media, according to different impeller designs, they can also transport media containing particles with a concentration of 8% -10%.
• Modular design enhances its stability and versatility, and its durable components reduce the number of required spare parts; Standard material configuration for the entire pump: duplex steel 2205.
• Strong performance, maximum head of 160m, maximum flow rate of 7560m ³/H, maximum temperature of 200 ℃, pressure rating of 2.5MPa, standard configuration of WEG high-efficiency four stage motor (1450r/min).
• The integral single casting design and heat sink structure design are more effective in dissipating heat from the bearing, extending the service life of the bearing.
• Standardized products have high interchangeability.
• Through extensive computational fluid dynamics (CFD) calculations and experiments, the OKC series pumps can consistently operate at high efficiency.
• The wide spectrum provides multiple model options, and different operating conditions can be selected according to their own requirements.
• The selection of multi-media impellers includes closed, open, and special open impellers, which enable the pump to meet special needs such as pumping pulp, sugar juice sludge, and solid liquids.

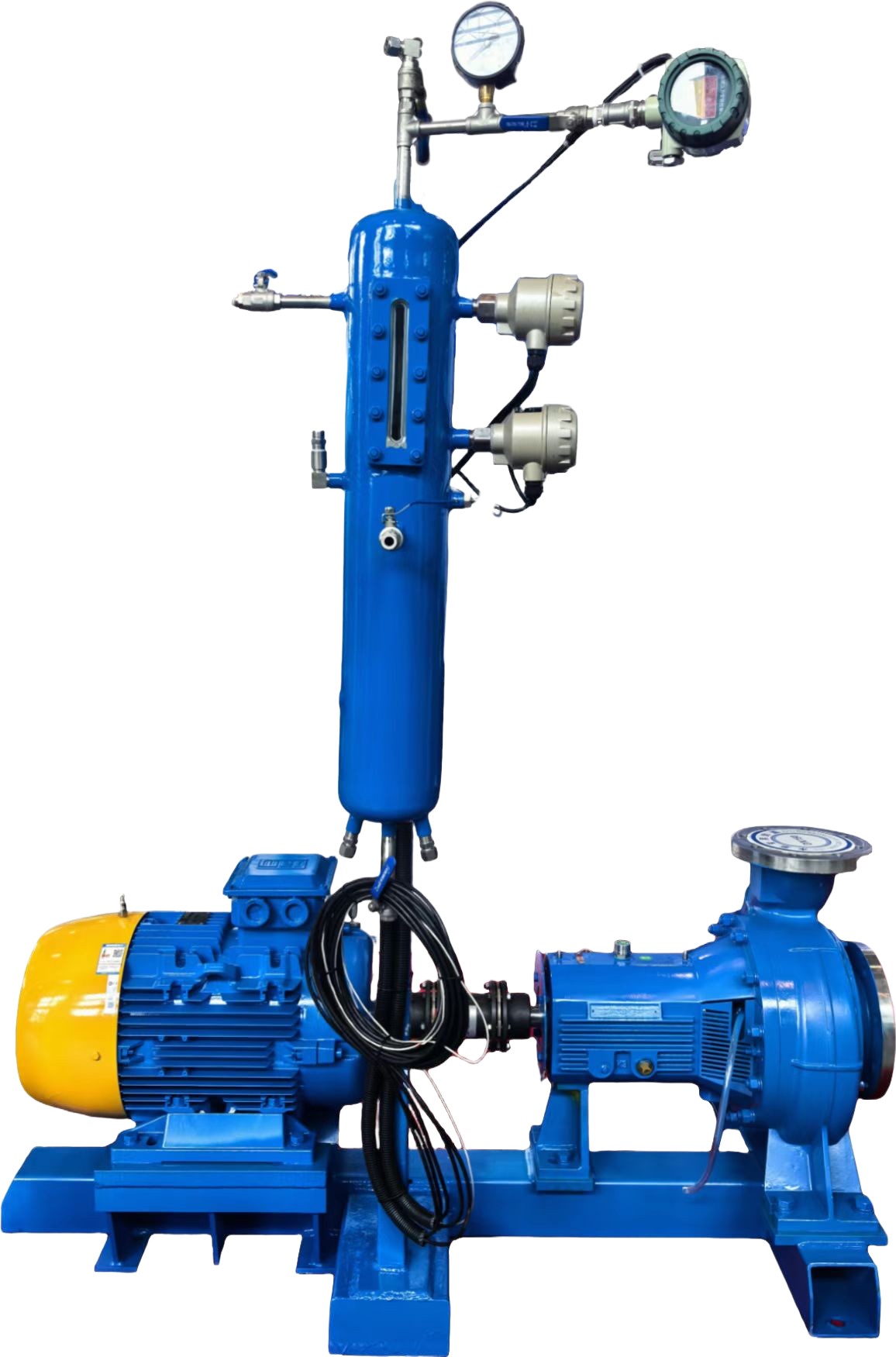

• Intelligent monitoring of equipment, by installing vibration sensors and temperature sensors on the equipment, real-time monitoring of the vibration and temperature changes of the equipment, avoiding unplanned shutdowns, improving maintenance efficiency, and reducing maintenance costs.
